The Renderer class executes the actual rendering on the given RenderQueue. More...

#include <Renderer.hpp>

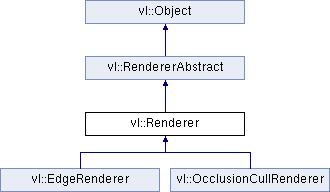

Inheritance diagram for vl::Renderer:

Public Member Functions
	Renderer ()
virtual	~Renderer ()
virtual const RenderQueue *	render (const RenderQueue in_render_queue, Camera camera, real frame_clock)
	Takes as input the render queue to render and returns a possibly filtered render queue for further processing.
void	setProjViewTransfCallback (ProjViewTransfCallback *callback)
const ProjViewTransfCallback *	projViewTransfCallback () const
ProjViewTransfCallback *	projViewTransfCallback ()
const std::map< unsigned int, ref< Shader > > &	shaderOverrideMask () const
	A bitmask/Shader map used to everride the Shader of those Actors whose enable mask satisfy the following condition: (Actors::enableMask() & bitmask) != 0.
std::map< unsigned int, ref < Shader > > &	shaderOverrideMask ()
	A bitmask/Shader map used to everride the Shader of those Actors whose enable mask satisfy the following condition: (Actors::enableMask() & bitmask) != 0.
std::vector< RenderStateSlot > &	overriddenDefaultRenderStates ()
	Render states that will be used as default by the opengl context by this renderer.
const std::vector < RenderStateSlot > &	overriddenDefaultRenderStates () const
	Render states that will be used as default by the opengl context by this renderer.
bool	isEnabled (unsigned int mask)
void	setFramebuffer (Framebuffer *framebuffer)
	The Framebuffer on which the rendering is performed.
const Framebuffer *	framebuffer () const
	The Framebuffer on which the rendering is performed.
Framebuffer *	framebuffer ()
	The Framebuffer on which the rendering is performed.
Protected Attributes
ref< Framebuffer >	mFramebuffer
vl::ref< EnableSet >	mDummyEnables
vl::ref< RenderStateSet >	mDummyStateSet
std::map< unsigned int, ref < Shader > >	mShaderOverrideMask
std::vector< RenderStateSlot >	mOverriddenDefaultRenderStates
ref< ProjViewTransfCallback >	mProjViewTransfCallback

Detailed Description

The Renderer class executes the actual rendering on the given RenderQueue.

See also:: Rendering

Definition at line 47 of file Renderer.hpp.

Constructor & Destructor Documentation

Renderer::Renderer ( )

Definition at line 44 of file Renderer.cpp.

References mDummyEnables, mDummyStateSet, mProjViewTransfCallback, and VL_DEBUG_SET_OBJECT_NAME.

virtual vl::Renderer::~Renderer ( ) [inline, virtual]

Definition at line 54 of file Renderer.hpp.

Member Function Documentation

const RenderQueue * Renderer::render	(	const RenderQueue *	in_render_queue,
		Camera *	camera,
		real	frame_clock
	)		`[virtual]`

Takes as input the render queue to render and returns a possibly filtered render queue for further processing.

Renderer's implementation of this function always returns in_render_queue.

Implements vl::RendererAbstract.

Reimplemented in vl::EdgeRenderer, and vl::OcclusionCullRenderer.

Definition at line 86 of file Renderer.cpp.

References vl::Viewport::activate(), vl::OpenGLContext::applyEnables(), vl::OpenGLContext::applyRenderStates(), vl::GLSLProgram::applyUniformSet(), vl::OpenGLContext::areUniformsColliding(), vl::RenderQueue::at(), vl::OpenGLContext::bindVAS(), vl::OpenGLContext::defaultRenderState(), vl::Actor::dispatchOnActorRenderStarted(), vl::Scissor::enable(), vl::Actor::enableMask(), vl::RendererAbstract::enableMask(), vl::Log::error(), vl::OpenGLContext::framebuffer(), framebuffer(), vl::ref< T >::get(), vl::Shader::getEnableSet(), vl::Shader::getRenderStateSet(), vl::Actor::getUniformSet(), vl::Shader::getUniformSet(), vl::GLSLProgram::getUniformSet(), vl::globalSettings(), vl::RenderStateSet::glslProgram(), vl::Shader::glslProgram(), vl::GLSLProgram::handle(), vl::Has_Fixed_Function_Pipeline, vl::Viewport::height(), isEnabled(), vl::GLSLProgram::linked(), vl::RenderToken::mActor, mDummyEnables, mDummyStateSet, vl::RenderToken::mNextPass, vl::RenderToken::mRenderable, vl::RenderToken::mShader, mShaderOverrideMask, NULL, vl::Framebuffer::openglContext(), overriddenDefaultRenderStates(), projViewTransfCallback(), vl::Renderable::render(), vl::Shader::scissor(), vl::Actor::scissor(), vl::Viewport::setClearFlags(), vl::OpenGLContext::setDefaultRenderState(), vl::RenderQueue::size(), vl::Actor::transform(), vl::UniformSet::uniforms(), vl::ProjViewTransfCallback::updateMatrices(), vl::Camera::viewport(), VL_CHECK, VL_CHECK_OGL, VL_TRAP, vl::Viewport::width(), vl::Viewport::x(), and vl::Viewport::y().

void vl::Renderer::setProjViewTransfCallback ( ProjViewTransfCallback * callback ) [inline]

Definition at line 60 of file Renderer.hpp.

const ProjViewTransfCallback* vl::Renderer::projViewTransfCallback ( ) const [inline]

Definition at line 62 of file Renderer.hpp.

Referenced by render(), and vl::OcclusionCullRenderer::render_pass2().

ProjViewTransfCallback* vl::Renderer::projViewTransfCallback ( ) [inline]

Definition at line 64 of file Renderer.hpp.

const std::map<unsigned int, ref<Shader> >& vl::Renderer::shaderOverrideMask ( ) const [inline]

A bitmask/Shader map used to everride the Shader of those Actors whose enable mask satisfy the following condition: (Actors::enableMask() & bitmask) != 0.

Useful when you want to override the Shader of a whole set of Actors. If multiple mask/shader pairs match an Actor's enable mask then the shader with the corresponding lowest mask will be used. See also vl::Actor::enableMask() and vl::Rendering::effectOverrideMask().

Definition at line 70 of file Renderer.hpp.

std::map<unsigned int, ref<Shader> >& vl::Renderer::shaderOverrideMask ( ) [inline]

A bitmask/Shader map used to everride the Shader of those Actors whose enable mask satisfy the following condition: (Actors::enableMask() & bitmask) != 0.

Useful when you want to override the Shader of a whole set of Actors. If multiple mask/shader pairs match an Actor's enable mask then the shader with the corresponding lowest mask will be used. See also vl::Actor::enableMask() and vl::Rendering::effectOverrideMask().

Definition at line 76 of file Renderer.hpp.

std::vector<RenderStateSlot>& vl::Renderer::overriddenDefaultRenderStates ( ) [inline]

Render states that will be used as default by the opengl context by this renderer.

Useful for example to setup the default left/right color mask for anaglyph stereo rendering.

Definition at line 80 of file Renderer.hpp.

Referenced by render().

const std::vector<RenderStateSlot>& vl::Renderer::overriddenDefaultRenderStates ( ) const [inline]

Render states that will be used as default by the opengl context by this renderer.

Useful for example to setup the default left/right color mask for anaglyph stereo rendering.

Definition at line 84 of file Renderer.hpp.

bool vl::Renderer::isEnabled ( unsigned int mask ) [inline]

Definition at line 86 of file Renderer.hpp.
