Base interface for all DrawRangeElements* sub classes. More...

#include <DrawRangeElements.hpp>

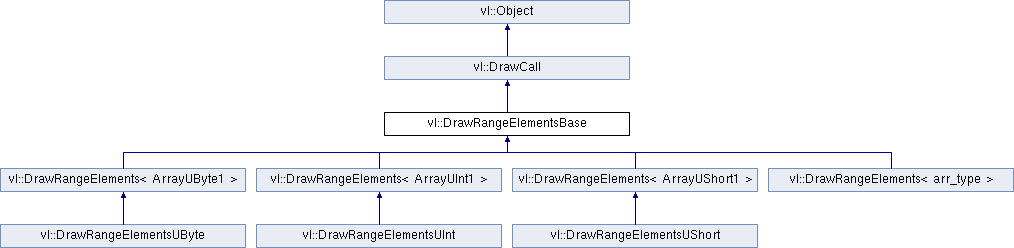

Inheritance diagram for vl::DrawRangeElementsBase:

Public Member Functions
void	setRangeStart (int rstart)
	Sets the range start.
int	rangeStart () const
	Returns the range start.
void	setRangeEnd (int rend)
	Sets the range end.
int	rangeEnd () const
	Returns the range end.
virtual bool	primitiveRestartEnabled () const
	Returns whether the primitive-restart functionality is enabled or not.
void	setPrimitiveRestartEnabled (bool enabled)
	Enables the primitive-restart functionality.
void	setBaseVertex (int base_vertex)
	If base_vertx is != 0 glDrawRangeElementsBaseVertex/glDrawRangeElementsInstancedBaseVertex will be used instead of their non *BaseVertx counterparts.
int	baseVertex () const
	Returns the currently used base vertex.
Protected Attributes
int	mRangeStart
int	mRangeEnd
GLuint	mBaseVertex
bool	mPrimitiveRestartEnabled

Detailed Description

Base interface for all DrawRangeElements* sub classes.

Implements the index-type-independent interface of the class. That is you can cast to DrawRangeElementsBase* and access its members without needing to know whether the actual class is a vl::DrawRangeElementsUInt, vl::DrawRangeElementsUShort or vl::DrawRangeElementsUByte.

Definition at line 54 of file DrawRangeElements.hpp.

Member Function Documentation

void vl::DrawRangeElementsBase::setRangeStart ( int rstart ) [inline]

Sets the range start.

Definition at line 60 of file DrawRangeElements.hpp.

References mRangeStart.

int vl::DrawRangeElementsBase::rangeStart ( ) const [inline]

Returns the range start.

Definition at line 63 of file DrawRangeElements.hpp.

References mRangeStart.

Referenced by vl::Geometry::shrinkDrawCalls().

void vl::DrawRangeElementsBase::setRangeEnd ( int rend ) [inline]

Sets the range end.

Definition at line 66 of file DrawRangeElements.hpp.

References mRangeEnd.

int vl::DrawRangeElementsBase::rangeEnd ( ) const [inline]

Returns the range end.

Definition at line 69 of file DrawRangeElements.hpp.

References mRangeEnd.

Referenced by vl::Geometry::shrinkDrawCalls().

virtual bool vl::DrawRangeElementsBase::primitiveRestartEnabled ( ) const [inline, virtual]

Returns whether the primitive-restart functionality is enabled or not.

See http://www.opengl.org/registry/specs/NV/primitive_restart.txt

Reimplemented from vl::DrawCall.

Definition at line 72 of file DrawRangeElements.hpp.

References mPrimitiveRestartEnabled.

Referenced by vl::DrawRangeElements< ArrayUShort1 >::lineIterator(), vl::DrawRangeElements< ArrayUShort1 >::render(), and vl::DrawRangeElements< ArrayUShort1 >::triangleIterator().

void vl::DrawRangeElementsBase::setPrimitiveRestartEnabled ( bool enabled ) [inline]

Enables the primitive-restart functionality.

See http://www.opengl.org/registry/specs/NV/primitive_restart.txt

Definition at line 75 of file DrawRangeElements.hpp.

References mPrimitiveRestartEnabled.

void vl::DrawRangeElementsBase::setBaseVertex ( int base_vertex ) [inline]

If base_vertx is != 0 glDrawRangeElementsBaseVertex/glDrawRangeElementsInstancedBaseVertex will be used instead of their non *BaseVertx counterparts.

Note that using base_vertx != requires OpenGL 3.2 or higher or ARB_draw_elements_base_vertex. For more information see also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawRangeElementsBaseVertex.xml

Definition at line 81 of file DrawRangeElements.hpp.

References mBaseVertex.

int vl::DrawRangeElementsBase::baseVertex ( ) const [inline]

Returns the currently used base vertex.

For more information see also http://www.opengl.org/sdk/docs/man3/xhtml/glDrawRangeElementsBaseVertex.xml

Definition at line 85 of file DrawRangeElements.hpp.

References mBaseVertex.

Referenced by vl::DrawRangeElements< ArrayUShort1 >::lineIterator(), vl::Geometry::shrinkDrawCalls(), and vl::DrawRangeElements< ArrayUShort1 >::triangleIterator().
